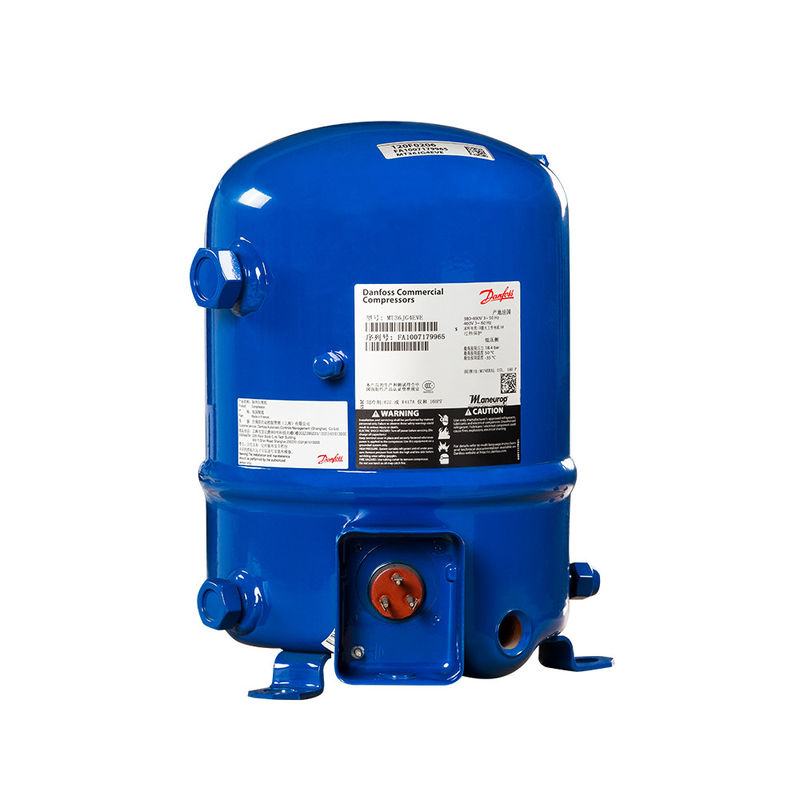

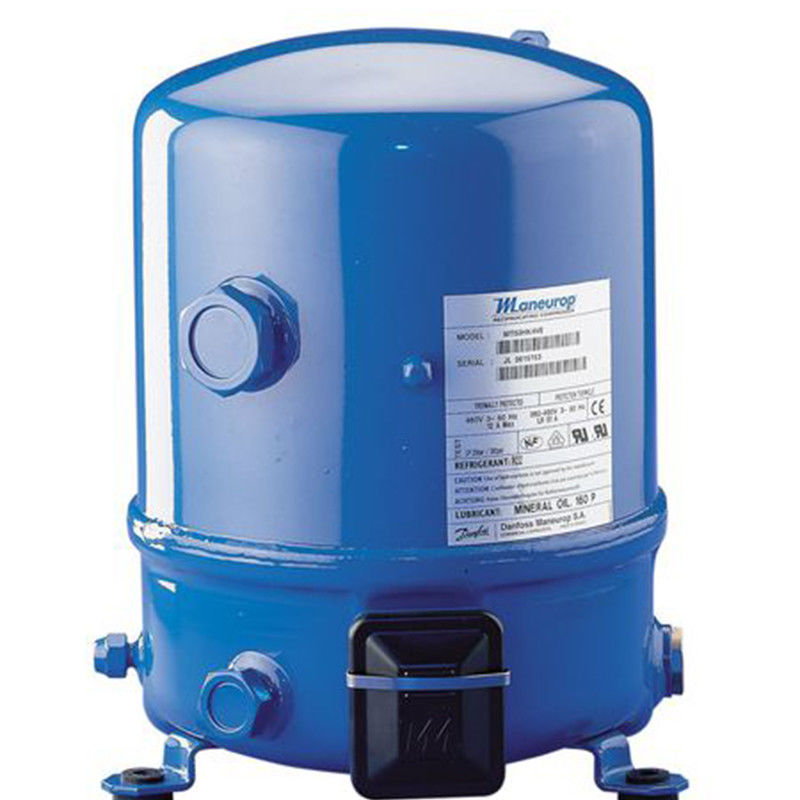

2m3/H compressor hermético do deslocamento R22 com 4 cilindros

  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
  • 2m3/H Displacement R22 Hermetic Compressor With 4 Cylinders
Lugar de origem Shanghai, China
Marca Maneurop
Certificação CE
Número do modelo Descreva
Quantidade de ordem mínima 1
Preço Consult
Detalhes da embalagem Empacotamento da pálete
Tempo de entrega 20days
Termos de pagamento L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte 1000 partes/partes pelo ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Líquido refrigerante R22 Cor azul
Contagem do cilindro 4 Peso [quilograma 2
Deslocamento [m3/h 2 Garantia 1 ano
Realçar

Compressor R22 hermético

,

compressor hermético do deslocamento 2m3/H

,

Compressor hermético de 4 cilindros
Deixe um recado
Descrição de produto
MT125-4. Capacidade refrigerando [quilowatts]
Tc/Te -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0 15,0
30,0 8,795 11,71 15,22 19,42 24,39 30,19 36,92 44,65 53,46
35,0 7,858 10,65 14,01 18,02 22,76 28,30 34,73 42,12 50,56
40,0 6,998 9,650 12,83 16,63 21,12 26,37 32,48 39,51 47,54
45,0 6,226 8,714 11,70 15,26 19,47 24,42 30,17 36,82 44,43
50,0 　 7,853 10,62 13,92 17,83 22,45 27,83 34,07 41,24
55,0 　 　 9,596 12,62 16,22 20,47 25,46 31,27 37,97
60,0 　 　 　 11,37 14,63 18,50 23,08 28,43 34,64
65,0 　 　 　 　 13,07 16,55 20,69 25,56 31,25



MT125-4. Consumo de potência [quilowatts]
Tc/Te -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0 15,0
30,0 4,821 5,395 5,939 6,430 6,848 7,172 7,381 7,453 7,367
35,0 5,081 5,689 6,276 6,822 7,305 7,705 7,999 8,168 8,189
40,0 5,301 5,950 6,588 7,196 7,752 8,234 8,622 8,894 9,030
45,0 5,476 6,173 6,870 7,547 8,182 8,754 9,243 9,626 9,884
50,0 　 6,352 7,115 7,868 8,590 9,259 9,856 10,36 10,74
55,0 　 　 7,316 8,153 8,969 9,743 10,45 11,08 11,60
60,0 　 　 　 8,396 9,313 10,20 11,03 11,79 12,46
65,0 　 　 　 　 9,617 10,62 11,59 12,49 13,30



MT125-4. Capacidade de aquecimento [quilowatts]
Tc/Te -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0 15,0
30,0 13,62 17,10 21,16 25,85 31,24 37,37 44,30 52,10 60,83
35,0 12,94 16,34 20,29 24,84 30,06 36,01 42,73 50,29 58,74
40,0 12,30 15,60 19,42 23,83 28,87 34,61 41,10 48,40 56,57
45,0 11,70 14,89 18,57 22,81 27,65 33,17 39,42 46,44 54,31
50,0 　 14,21 17,73 21,78 26,42 31,71 37,69 44,43 51,98
55,0 　 　 16. 91 20,77 25,18 30,22 35,92 42,35 49,57
60,0 　 　 　 19,76 23,94 28,70 34,11 40,23 47,10



MT125-4. Atual [A]
Tc/Te -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0 15,0
30,0 8,575 9,272 9,982 10,66 11,26 11,74 12,05 12,15 11. 99
35,0 8,901 9,654 10,44 11,21 11,92 12,53 12,99 13,26 13,29
40,0 9,182 10,00 10,88 11,75 12,59 13,35 13,97 14,43 14,66
45,0 9,404 10,31 11,28 12,28 13,26 14,18 14,98 15,63 16,08
50,0 　 10,56 11,65 12,78 13,91 15,00 16,00 16,86 17,54
55,0 　 　 11. 95 13,24 14,54 15,81 17,01 18,10 19,02
60,0 　 　 　 13,63 15,11 16,59 18,01 19,33 20,52
65,0 　 　 　 　 15,64 17,32 18,98 20,55 22,01



MT125-4. BOBINA [W/W]
Tc/Te -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0 15,0
30,0 1,82 2,17 2,56 3,02 3,56 4,21 5,00 5,99 7,26
35,0 1,55 1,87 2,23 2,64 3,12 3,67 4,34 5,16 6,17
40,0 1,32 1,62 1,95 2,31 2,72 3,20 3,77 4,44 5,26
45,0 1,14 1,41 1,70 2,02 2,38 2,79 3,26 3,83 4,50
50,0 　 1,24 1,49 1,77 2,08 2,42 2,82 3,29 3,84
55,0 　 　 1,31 1,55 1,81 2,10 2,44 2,82 3,27
60,0 　 　 　 1,35 1,57 1,81 2,09 2,41 2,78
65,0 　 　 　 　 1,36 1,56 1,79 2,05 2,35



MT125-4. Fluxo de massa [kg/h]
Tc/Te -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0 15,0
30,0 191,5 251,5 322,7 406,5 504,2 616,9 745,9 892,5 1058
35,0 178,1 237,9 308,7 391,8 488,5 600,1 727,9 873,1 1037
40,0 165,4 224,7 294,6 376,5 471,7 581,7 707,6 850,9 1013
45,0 153,9 212,1 280,5 360,6 453,8 561,5 685,2 826,1 985,6
50,0 　 200,4 266,6 344,3 434,9 539,8 660,5 798,4 955,0
55,0 　 　 253,4 328,0 415,1 516,6 633,7 768,0 920,9
60,0 　 　 　 311,7 394,8 491,9 604,6 734,5 883,2
65,0 　 　 　 　 373,9 465,8 573,3 698,1 841,7



2m3/H compressor hermético do deslocamento R22 com 4 cilindros 02m3/H compressor hermético do deslocamento R22 com 4 cilindros 12m3/H compressor hermético do deslocamento R22 com 4 cilindros 22m3/H compressor hermético do deslocamento R22 com 4 cilindros 32m3/H compressor hermético do deslocamento R22 com 4 cilindros 4
