Compressor de ar R134A do rolo 9HP para o refrigerador de água comercial

  • 9HP scroll air compressor R134A For Commercial Water Chiller
  • 9HP scroll air compressor R134A For Commercial Water Chiller
  • 9HP scroll air compressor R134A For Commercial Water Chiller
Lugar de origem Shanghai, China
Marca Maneurop
Certificação CE
Número do modelo MLZ066
Quantidade de ordem mínima 1
Preço Consult
Detalhes da embalagem Empacotamento da pálete
Tempo de entrega 20days
Termos de pagamento L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte 1000 partes/partes pelo ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Líquido refrigerante R22, R134A, R404, R507 Deslocamento [m3/h 2
Garantia 1 ano Poder 9HP
Peso [quilograma 2 Tipo do óleo PVE
Realçar

Compressor de ar do rolo 9HP

,

Compressor de ar R134A do rolo

,

Compressor mais frio comercial do rolo da água
Deixe um recado
Descrição de produto

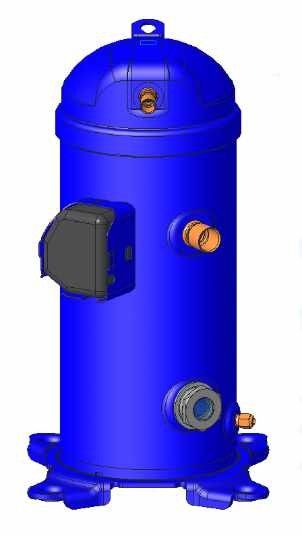

Compressor do rolo de 9HP Maneurop usado para o refrigerador de água comercial MLZ066







MLZ066T4A. Capacidade refrigerando [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 10,26 12,78 15,84 19,49 23,78 　 　 　 　
15,0 9,665 12,12 15,07 18,57 22,67 27,41 　 　 　
20,0 9,062 11,43 14,27 17,61 21,51 26,03 31,20 　 　
25,0 8,449 10,73 13,43 16,61 20,31 24,58 29,48 35,05 　
30,0 7,827 10,01 12,58 15,58 19,06 23,09 27,69 32,94 38,9
35,0 7,197 9,271 11,69 14,51 17,77 21,54 25,85 30,76 36,3
40,0 　 8,516 10,78 13,41 16,44 19. 93 23,94 28,50 33,7
45,0 　 7,744 9,846 12,27 15,06 18,28 21,97 26,18 31,0
50,0 　 　 8,886 11,10 13,64 16,57 19,94 23,78 28,2
55,0 　 　 　 9,894 12,18 14,82 17,85 21,32 25,3
60,0 　 　 　 　 10,68 13,01 15,70 18,79 22,4



MLZ066T4A. Consumo de potência [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 3,238 3,262 3,314 3,401 3,527 　 　 　 　
15,0 3,600 3,611 3,649 3,719 3,827 3,976 　 　 　
20,0 3,992 3,993 4,019 4,075 4,165 4,294 4,468 　 　
25,0 4,432 4,426 4,441 4,483 4,558 4,669 4,822 5,023 　
30,0 4,937 4,924 4,930 4,961 5,022 5,117 5,252 5,431 5,7
35,0 5,522 5,505 5,504 5,526 5,575 5,655 5,773 5,933 6,1
40,0 　 6,184 6,179 6,193 6,231 6,299 6,402 6,545 6,7
45,0 　 6,980 6,970 6,978 7,009 7,066 7,156 7,282 7,5
50,0 　 　 7,896 7,900 7,923 7,972 8,050 8,163 8,3
55,0 　 　 　 8,973 8,992 9,033 9,101 9,202 9,3
60,0 　 　 　 　 10,23 10,27 10,33 10,42 10,5



MLZ066T4A. Capacidade de aquecimento [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 13,35 15,95 19,07 22,77 27,16 　 　 　 　
15,0 13,06 15,62 18,65 22,19 26,33 31,21 　 　 　
20,0 12,78 15,32 18,25 21,63 25,55 30,12 35,49 　 　
25,0 12,53 15,04 17,88 21,09 24,81 29,08 34,05 39,94 　
30,0 12,28 14,78 17,51 20,54 24,09 28,10 32,69 38,08 44,5
35,0 12,04 14,53 17,20 20,03 23,35 27,17 31,40 36,31 42,2
40,0 　 14,29 16. 92 19,60 22,67 26,23 30,18 34,64 39,9
45,0 　 14,04 16,62 19,25 22,07 25,34 29,03 33,07 37,8
50,0 　 　 16,33 18,96 21,57 24,54 27,97 31,61 35,8
55,0 　 　 　 18,56 21,17 23,85 26,95 30,26 34,0
60,0 　 　 　 　 20,69 23,27 26,02 29,06 32,3



MLZ066T4A.Current [A]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 9,978 9,887 9,823 9,782 9,762 　 　 　 　
15,0 10,35 10,29 10,26 10,26 10,27 10,30 　 　 　
20,0 10,68 10,65 10,65 10,67 10,71 10,77 10,85 　 　
25,0 11,01 11,01 11,03 11,07 11,13 11,21 11,30 11,41 　
30,0 11,41 11,42 11,46 11,51 11,58 11,67 11,77 11,89 12,0
35,0 11. 91 11. 93 11. 97 12,03 12,11 12,20 12,31 12,43 12,6
40,0 　 12,59 12,63 12,69 12,76 12,85 12. 95 13,07 13,2
45,0 　 13,45 13,48 13,53 13,59 13,67 13,76 13,86 13. 97
50,0 　 　 14,57 14,60 14,64 14,70 14,78 14,86 14,9
55,0 　 　 　 15,95 15. 97 16,00 16,05 16,10 16,2
60,0 　 　 　 　 17,62 17,62 17,63 17,65 17,7



MLZ066T4A. BOBINA [W/W]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 3,17 3,92 4,78 5,73 6,74 　 　 　 　
15,0 2,69 3,36 4,13 4,99 5,92 6,90 　 　 　
20,0 2,27 2,86 3,55 4,32 5,17 6,06 6,98 　 　
25,0 1,91 2,43 3,02 3,71 4,46 5,26 6,11 6,98 　
30,0 1,58 2,03 2,55 3,14 3,80 4,51 5,27 6,07 6,9
35,0 1,30 1,68 2,12 2,63 3,19 3,81 4,48 5,18 5,9
40,0 　 1,38 1,75 2,17 2,64 3,16 3,74 4,36 5,0
45,0 　 1,11 1,41 1,76 2,15 2,59 3,07 3,60 4,2
50,0 　 　 1,13 1,41 1,72 2,08 2,48 2,91 3,4
55,0 　 　 　 1,10 1,35 1,64 1,96 2,32 2,7
60,0 　 　 　 　 1,04 1,27 1,52 1,80 2,1



MLZ066T4A. Fluxo de massa [kg/h]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 206,8 258,8 322,4 399,0 490,0 　 　 　 　
15,0 203,1 255,8 319,7 396,4 487,4 594,6 　 　 　
20,0 199,1 252,3 316,5 393,1 483,9 590,7 715,8 　 　
25,0 194,6 248,3 312,6 389,1 479,5 585,9 710,5 856,1 　
30,0 189,6 243,7 308,0 384,2 474,1 579,9 703,9 849,1 1019
35,0 184,2 238,5 302,7 378,4 467,7 572,7 695,9 840,6 1011
40,0 　 232,7 296,6 371,7 460,2 564,2 686,6 830,7 1001
45,0 　 226,2 289,7 364,0 451,5 554,4 675,9 819,3 989,3
50,0 　 　 282,0 355,4 441,6 543,4 663,9 806,8 977,2
55,0 　 　 　 345,9 430,9 531,5 651,2 794,0 965,5
60,0 　 　 　 　 420,0 519,8 639,1 782,7 956,8

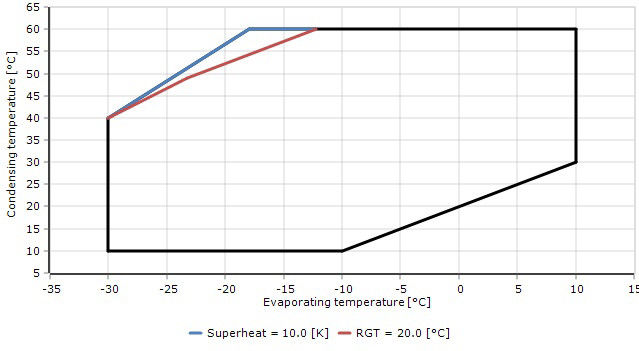

Te = temperatura de evaporação [°C]

Tc = temperatura de condensação [°C]



Compressor de ar R134A do rolo 9HP para o refrigerador de água comercial 0Compressor de ar R134A do rolo 9HP para o refrigerador de água comercial 1Compressor de ar R134A do rolo 9HP para o refrigerador de água comercial 2Compressor de ar R134A do rolo 9HP para o refrigerador de água comercial 3Compressor de ar R134A do rolo 9HP para o refrigerador de água comercial 4Compressor de ar R134A do rolo 9HP para o refrigerador de água comercial 5
