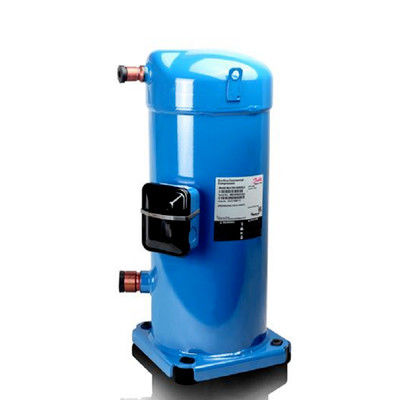

deslocamento do compressor 5hp R507A 2m3/H do refrigerador do óleo 1.6L

  • 1.6L Oil Refrigerator Compressor 5hp R507A 2m3/H Displacement
  • 1.6L Oil Refrigerator Compressor 5hp R507A 2m3/H Displacement
  • 1.6L Oil Refrigerator Compressor 5hp R507A 2m3/H Displacement
Lugar de origem Shanghai, China
Marca maneurop
Certificação CE
Número do modelo MLZ038
Quantidade de ordem mínima 1
Preço Consult
Detalhes da embalagem Empacotamento da pálete
Tempo de entrega 20days
Termos de pagamento L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte 1000 partes/partes pelo ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Líquido refrigerante R404A/R507A, R134a, R22 Poder de cavalo 5hp
Deslocamento [m3/h 2 Carga do óleo 1,6L
Peso [quilograma 2 Tipo do óleo PVE
Realçar

compressor do refrigerador do óleo 1.6L

,

Compressor 5hp do refrigerador

,

Tipo compressor do óleo de PVE do refrigerador
Deixe um recado
Descrição de produto

compressor do refrigerador do maneurop 5hp, compressor MLZ038 modelo do maneruop 5hp







MLZ038T4A. Capacidade refrigerando [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 5,776 7,017 8,524 10,32 12,44 　 　 　 　
15,0 5,553 6,782 8,260 10,01 12,07 14,45 　 　 　
20,0 5,296 6,504 7,944 9,641 11,62 13,92 16,55 　 　
25,0 5,008 6,186 7,578 9,211 11,11 13,31 15,82 18,68 　
30,0 4,692 5,831 7,166 8,725 10,53 12,62 15,01 17,73 20,8
35,0 4,351 5,441 6,711 8,187 9,896 11,86 14,12 16,68 19,59
40,0 　 5,020 6,215 7,600 9,200 11,04 13,15 15,56 18,28
45,0 　 4,571 5,683 6,966 8,447 10,15 12,11 14,35 16,89
50,0 　 　 5,115 6,288 7,643 9,204 11,00 13,06 15,4
55,0 　 　 　 5,571 6,788 8,196 9,821 11,69 13,83
60,0 　 　 　 　 5,888 7,133 8,578 10,25 12,17



MLZ038T4A. Consumo de potência [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 1,671 1,694 1,729 1,780 1,847 　 　 　 　
15,0 1,876 1,891 1,917 1,956 2,012 2,085 　 　 　
20,0 2,113 2,120 2,137 2,166 2,209 2,269 2,348 　 　
25,0 2,385 2,385 2393 2,412 2,444 2,491 2,556 2,641 　
30,0 2,698 2,691 2,691 2,700 2,721 2,756 2,807 2,876 2,968
35,0 3,056 3,043 3,036 3,035 3,045 3,068 3,105 3,160 3,235
40,0 　 3,446 3,431 3,422 3,422 3,433 3,457 3,497 3,556
45,0 　 3,904 3,882 3,865 3,855 3,854 3,866 3,892 3,935
50,0 　 　 4,394 4,369 4,349 4,338 4,337 4,350 4,378
55,0 　 　 　 4,938 4,910 4,889 4,876 4,875 4,888
60,0 　 　 　 　 5,542 5,511 5,487 5,473 5,472



MLZ038T4A. Capacidade de aquecimento [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 7,328 8,571 10,08 11,89 14,06 　 　 　 　
15,0 7,317 8,562 10,04 11,80 13,88 16,34 　 　 　
20,0 7,290 8,535 9,989 11,69 13,67 16,00 18,76 　 　
25,0 7,246 8,491 9,915 11,55 13,44 15,64 18,22 21,28 　
30,0 7,184 8,429 9,823 11,40 13,19 15,25 17,66 20,49 23,77
35,0 7,102 8,347 9,712 11,22 12,93 14,86 17,08 19,69 22,8
40,0 　 8,241 9,577 11,02 12,62 14,45 16,50 18,88 21,71
45,0 　 8,106 9,413 10,81 12,30 14,01 15. 91 18,08 20,61
50,0 　 　 9,213 10,56 11,99 13,54 15,31 17,27 19,54
55,0 　 　 　 10,26 11,63 13,09 14,70 16,48 18,49
60,0 　 　 　 　 11,21 12,59 14,06 15,69 17,49



MLZ038T4A. Atual [A]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 3,589 3,592 3,598 3,610 3,632 　 　 　 　
15,0 3,931 3,944 3,959 3,980 4,010 4,054 　 　 　
20,0 4,263 4,281 4,301 4,326 4,361 4,408 4,472 　 　
25,0 4,607 4,626 4,647 4,672 4,707 4,753 4,816 4,899 　
30,0 4,987 5,004 5,021 5,042 5,072 5,113 5,171 5,248 5,348
35,0 5,428 5,437 5,447 5,459 5,480 5,512 5,560 5,627 5,716
40,0 　 5,951 5,948 5,948 5,956 5,974 6,008 6,060 6,134
45,0 　 6,570 6,550 6,533 6,523 6,523 6,538 6,571 6,626
50,0 　 　 7,275 7,237 7,205 7,183 7,175 7,185 7,216
55,0 　 　 　 8,084 8,026 7,977 7,942 7,924 7,928
60,0 　 　 　 　 9,010 8,930 8,864 8,814 8,785



MLZ038T4A. BOBINA [W/W]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 3,46 4,14 4,93 5,80 6,74 　 　 　 　
15,0 2,96 3,59 4,31 5,12 6,00 6,93 　 　 　
20,0 2,51 3,07 3,72 4,45 5,26 6,13 7,05 　 　
25,0 2,10 2,59 3,17 3,82 4,55 5,34 6,19 7,07 　
30,0 1,74 2,17 2,66 3,23 3,87 4,58 5,35 6,16 7,01
35,0 1,42 1,79 2,21 2,70 3,25 3,87 4,55 5,28 6,06
40,0 　 1,46 1,81 2,22 2,69 3,22 3,81 4,45 5,14
45,0 　 1,17 1,46 1,80 2,19 2,63 3,13 3,69 4,29
50,0 　 　 1,16 1,44 1,76 2,12 2,54 3,00 3,52
55,0 　 　 　 1,13 1,38 1,68 2,01 2,40 2,83
60,0 　 　 　 　 1,06 1,29 1,56 1,87 2,22



MLZ038T4A. Fluxo de massa [kg/h]
Tc/Te -30,0 -250 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 116,5 142,1 173,5 211,3 256,5 　 　 　 　
15,0 116,7 143,2 175,3 213,8 259,5 313,4 　 　 　
20,0 116,3 143,5 176,2 215,3 261,5 315,9 379,6 　 　
25,0 115,3 143,1 176,3 215,8 262,3 317,1 381,3 456,3 　
30,0 113,7 142,0 175,5 215,2 262,0 317,0 381,5 456,8 545,4
35,0 111,4 140,0 173,7 213,6 260,4 315,5 380,2 456,0 545,1
40,0 　 137,2 171,0 210,7 257,5 312,5 377,2 453,4 543,2
45,0 　 133,5 167,2 206,7 253,2 308,0 372,6 449,0 539,5
50,0 　 　 162,3 201,4 247,4 301,8 366,3 442,8 534,2
55,0 　 　 　 194,7 240,1 294,1 358,4 435,3 527,7
60,0 　 　 　 　 231,6 285,0 349,2 426,8 521,1

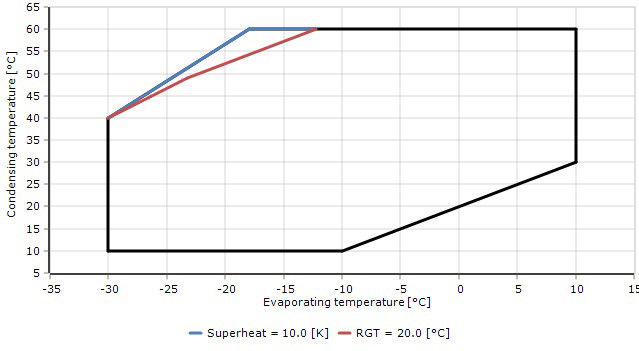

Te = temperatura de evaporação [°C]

Tc = temperatura de condensação [°C]
