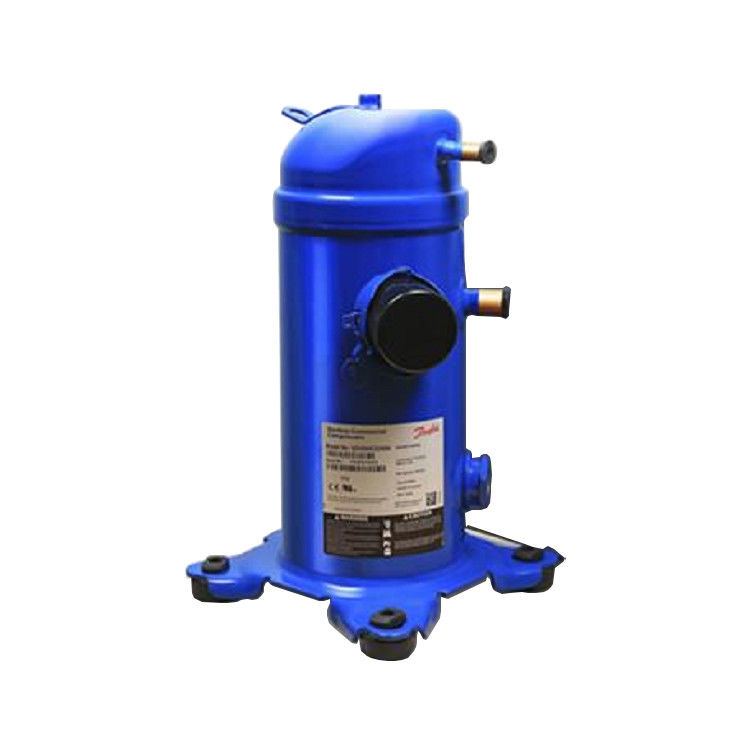

Compressor MLZ030 do rolo da refrigeração da alimentação CA 4hp com óleo 1.6L

  • AC Power 4hp Refrigeration Scroll Compressor MLZ030 With 1.6L Oil
  • AC Power 4hp Refrigeration Scroll Compressor MLZ030 With 1.6L Oil
  • AC Power 4hp Refrigeration Scroll Compressor MLZ030 With 1.6L Oil
Lugar de origem Shanghai, China
Marca Maneurop
Certificação CE
Número do modelo MLZ030
Quantidade de ordem mínima 1
Preço Consult
Detalhes da embalagem Empacotamento da pálete
Tempo de entrega 20days
Termos de pagamento L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte 1000 partes/partes pelo ano

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Líquido refrigerante R22, R134A, R404, R507 Garantia 1 ano
Peso [quilograma 2 Carga do óleo 1,6L
Fonte de energia C.A. Tipo do óleo PVE
Realçar

compressor do rolo da refrigeração 4hp

,

Compressor do rolo da refrigeração da alimentação CA

,

compressor do rolo da refrigeração do óleo 1.6L
Deixe um recado
Descrição de produto

compressor barato MLZ030 do rolo de Maneurop da refrigeração 4hp







MLZ030T4A. Capacidade refrigerando [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 4,945 6,061 7,408 9,010 10,89 　 　 　 　
15,0 4,674 5,760 7,062 8,605 10,41 12,50 　 　 　
20,0 4,399 5,451 6,705 8,183 9,909 11,91 14,20 　 　
25,0 4,120 5,134 6,335 7,745 9,387 11,29 13,46 15,94 　
30,0 3,837 4,809 5,951 7,289 8,843 10,64 12,70 15,04 17,7
35,0 3,548 4,473 5,554 6,814 8,277 9,965 11,90 14,11 16,61
40,0 　 4,127 5,142 6,321 7,687 9,264 11,07 13,14 15,49
45,0 　 3,771 4,716 5,809 7,074 8,535 10,21 12,13 14,32
50,0 　 　 4,273 5,276 6,437 7,777 9,320 11,09 13,11
55,0 　 　 　 4,723 5,774 6,990 8,394 10,01 11,86
60,0 　 　 　 　 5,086 6,174 7,434 8,889 10,56



MLZ030T4A. Consumo de potência [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 1,470 1,496 1,519 1,539 1,558 　 　 　 　
15,0 1,639 1,668 1,693 1,714 1,734 1,752 　 　 　
20,0 1,831 1,861 1,887 1,909 1,928 1,945 1,962 　 　
25,0 2,051 2,081 2,106 2,127 2,145 2,161 2,176 2,190 　
30,0 2,303 2,332 2,356 2,375 2,391 2,404 2,416 2,427 2,438
35,0 2,595 2,621 2,642 2,658 2,671 2,680 2,688 2,694 2,701
40,0 　 2,953 2,970 2,982 2,990 2,995 2,997 2,998 2,998
45,0 　 3,332 3,344 3,351 3,353 3,352 3,348 3,342 3,335
50,0 　 　 3,771 3,771 3,767 3,758 3,747 3,733 3,717
55,0 　 　 　 4,248 4,235 4,218 4,198 4,175 4,151
60,0 　 　 　 　 4,764 4,738 4,708 4,675 4,64



MLZ030T4A. Capacidade de aquecimento [quilowatts]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 6,337 7,529 8,927 10,55 12,45 　 　 　 　
15,0 6,181 7,339 8,729 10,32 12,14 14,25 　 　 　
20,0 6,048 7,175 8,503 10,07 11,84 13,85 16,16 　 　
25,0 5,937 7,036 8,307 9,787 11,53 13,45 15,64 18,13 　
30,0 5,843 6,921 8,140 9,535 11,15 13,04 15,11 17,47 20,14
35,0 5,764 6,826 7,999 9,317 10,82 12,56 14,59 16,80 19,31
40,0 　 6,747 7,883 9,131 10,53 12,12 13,97 16,14 18,48
45,0 　 6,681 7,785 8,973 10,28 11,74 13,40 15,35 17,65
50,0 　 　 7,700 8,838 10,06 11,40 12,91 14,63 16,68
55,0 　 　 　 8,722 9,879 11,12 12,49 14,02 15,78
60,0 　 　 　 　 9,730 10,90 12,14 13,52 15,05



MLZ030T4A. Atual [A]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 4,098 4,088 4,090 4,097 4,099 　 　 　 　
15,0 4,215 4,219 4,236 4,258 4,278 4,286 　 　 　
20,0 4,360 4,371 4,398 4,432 4,464 4,487 4,491 　 　
25,0 4,546 4,561 4,592 4,632 4,672 4,704 4,719 4,709 　
30,0 4,789 4,801 4,833 4,874 4,917 4,953 4,974 4,971 4,936
35,0 5,102 5,108 5,134 5,172 5,213 5,249 5,271 5,270 5,239
40,0 　 5,496 5,512 5,541 5,575 5,605 5,623 5,620 5,588
45,0 　 5,979 5,980 5,996 6,018 6,038 6,047 6,037 5,999
50,0 　 　 6,553 6,551 6,556 6,561 6,556 6,533 6,485
55,0 　 　 　 7,221 7,204 7,189 7,165 7,125 7,061
60,0 　 　 　 　 7,977 7,936 7,889 7,827 7,742



MLZ030T4A. BOBINA [W/W]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 3,37 4,05 4,88 5,85 6,99 　 　 　 　
15,0 2,85 3,45 4,17 5,02 6,00 7,14 　 　 　
20,0 2,40 2,93 3,55 4,29 5,14 6,12 7,24 　 　
25,0 2,01 2,47 3,01 3,64 4,38 5,22 6,19 7,28 　
30,0 1,67 2,06 2,53 3,07 3,70 4,42 5,25 6,20 7,26
35,0 1,37 1,71 2,10 2,56 3,10 3,72 4,43 5,24 6,15
40,0 　 1,40 1,73 2,12 2,57 3,09 3,70 4,38 5,17
45,0 　 1,13 1,41 1,73 2,11 2,55 3,05 3,63 4,29
50,0 　 　 1,13 1,40 1,71 2,07 2,49 2,97 3,53
55,0 　 　 　 1,11 1,36 1,66 2,00 2,40 2,86
60,0 　 　 　 　 1,07 1,30 1,58 1,90 2,28



MLZ030T4A. Fluxo de massa [kg/h]
Tc/Te -30,0 -25,0 -20,0 -15,0 -10,0 -5,0 0 5,0 10,0
10,0 99,72 122,7 150,7 184,4 224,5 　 　 　 　
15,0 98,24 121,6 149,9 183,7 223,8 271,1 　 　 　
20,0 96,63 120,3 148,7 182,7 222,9 270,2 325,7 　 　
25,0 94,88 118,8 147,4 181,4 221,6 269,0 324,4 389,4 　
30,0 92,95 117,1 145,8 179,8 219,9 267,2 322,7 387,8 464,0
35,0 90,80 115,1 143,8 177,7 217,8 265,0 320,4 385,6 462,3
40,0 　 112,8 141,5 175,3 215,2 262,2 317,6 382,9 460,1
45,0 　 110,2 138,7 172,4 212,0 258,9 314,2 379,8 457,5
50,0 　 　 135,6 169,0 208,4 255,0 310,4 376,2 454,8
55,0 　 　 　 165,1 204,3 250,8 306,3 372,7 452,5
60,0 　 　 　 　 200,1 246,7 302,6 370,2 452,3

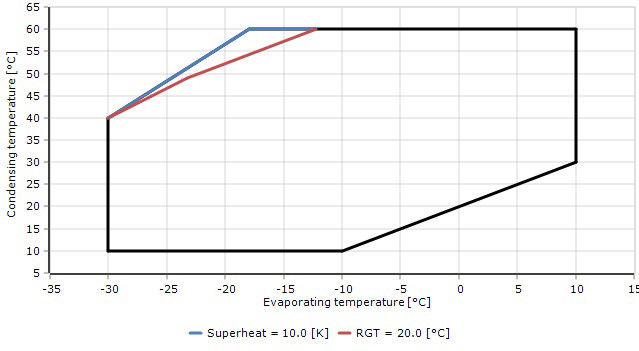

Te = temperatura de evaporação [°C]

Tc = temperatura de condensação [°C]



Compressor MLZ030 do rolo da refrigeração da alimentação CA 4hp com óleo 1.6L 0Compressor MLZ030 do rolo da refrigeração da alimentação CA 4hp com óleo 1.6L 1Compressor MLZ030 do rolo da refrigeração da alimentação CA 4hp com óleo 1.6L 2Compressor MLZ030 do rolo da refrigeração da alimentação CA 4hp com óleo 1.6L 3Compressor MLZ030 do rolo da refrigeração da alimentação CA 4hp com óleo 1.6L 4Compressor MLZ030 do rolo da refrigeração da alimentação CA 4hp com óleo 1.6L 5
