Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply

  • Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply
  • Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply
  • Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply
  • Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply
  • Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply
Quantidade de ordem mínima 1
Preço $8,000

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Faixa de temperatura -20-8c, 8-18c, 18-20c, 20-25c Peso 350 kg
Tipo de compressor De peso superior a 20 g/m2 Fonte de energia 380V/3ph/50Hz
Refrigerante R-404a Capacidade de resfriamento 5,6-140 kW
Tensão 1N-220V-50HZ, 3N-380V-50HZ Nível de ruído 68-75dBA
Potência do compressor 1,5-9 kW Poder bruto 2,1-43,5 kW
Tipo de evaporador Aleta de alumínio com manga de tubo de cobre Tipo de condensador Aleta de alumínio com manga de tubo de cobre
Saída do ar 400-10.000 m³/h Diâmetro de saída 100-200 milímetro
Motor elétrico 0,37-7,5 kW
Destacar

-40degree Cold Air Water Chiller

,

2HP to 50HP Industrial Chiller

,

380V/3ph/50Hz Air Cooled Chiller
Deixe um recado
Descrição de produto
KUB OEM -40°C Cold Air Chiller with Semi-Hermetic Compressor (2HP to 50HP Models)

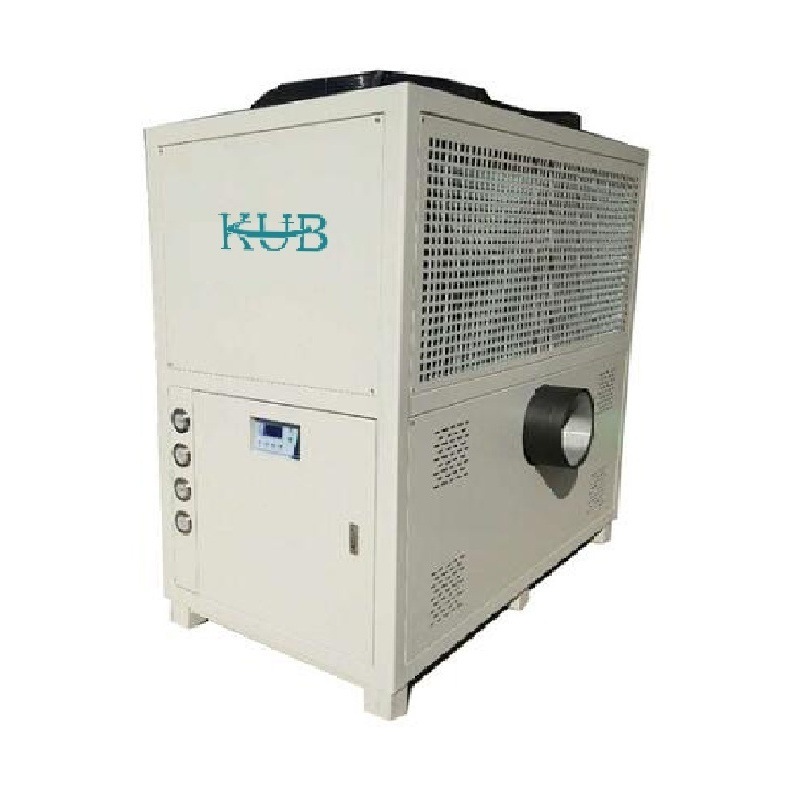

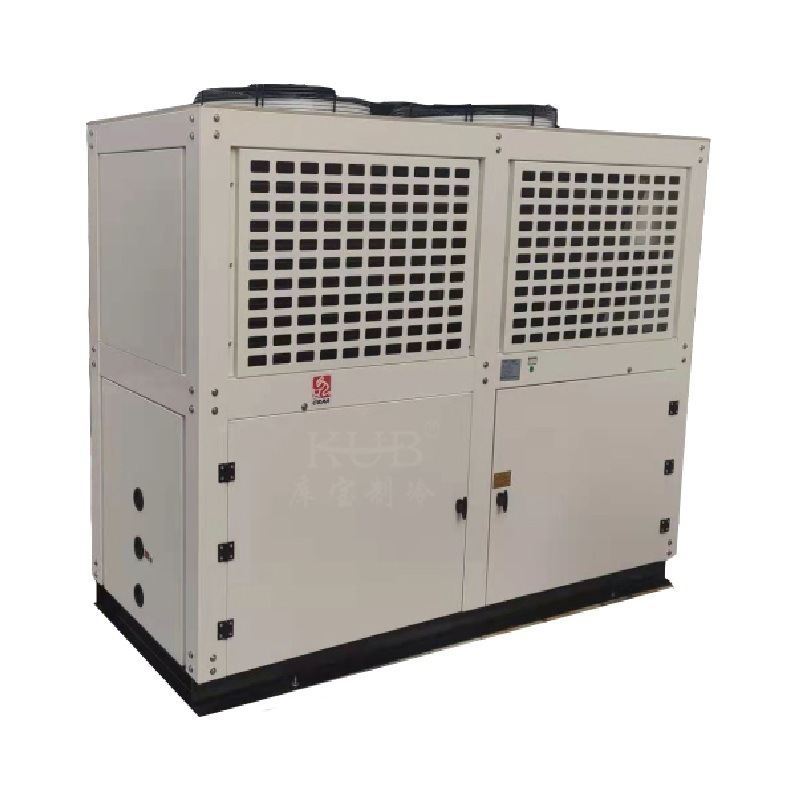

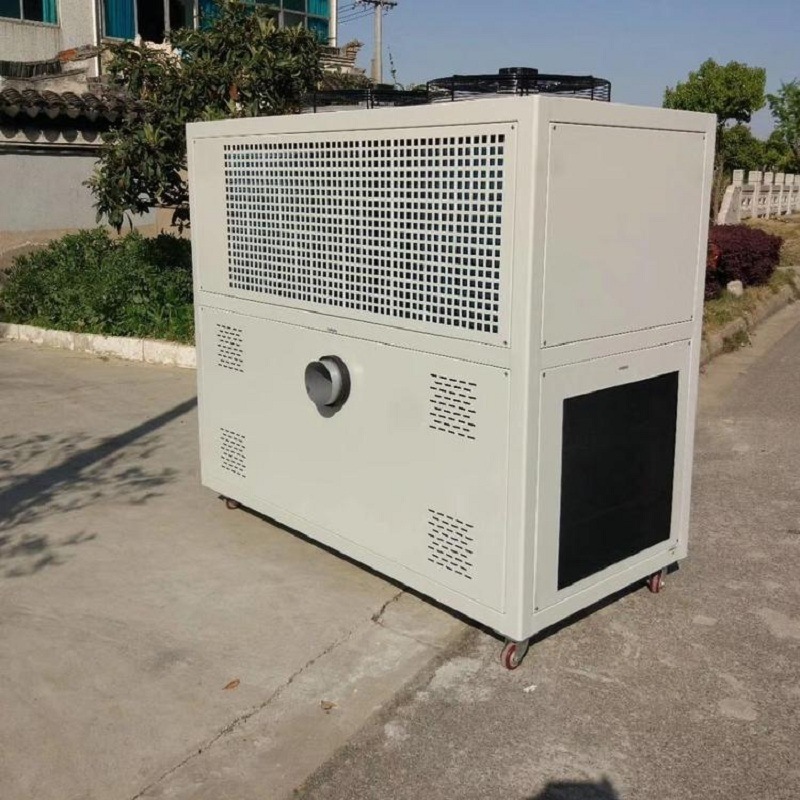

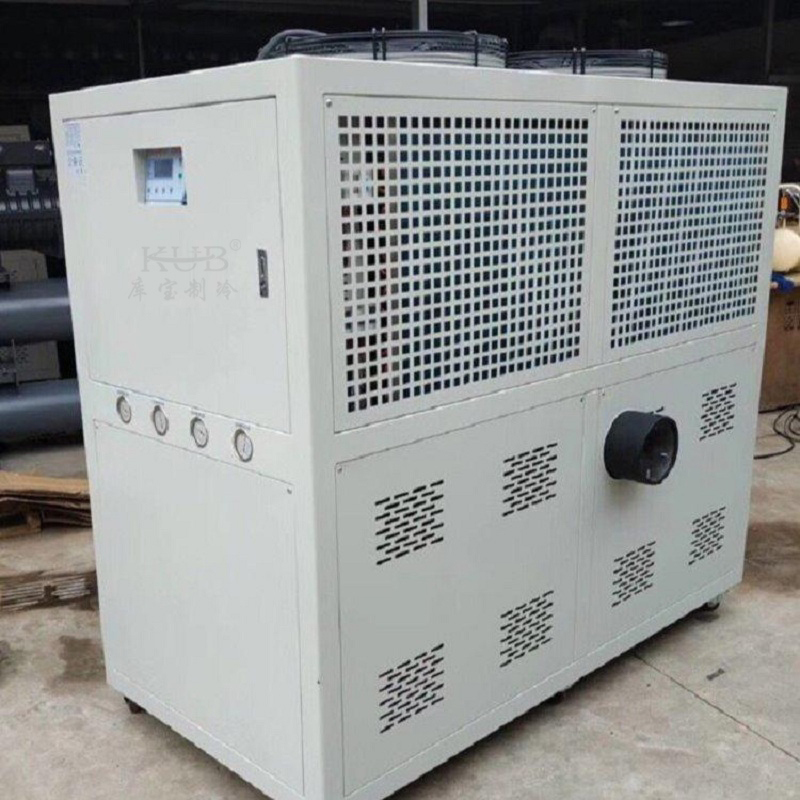

KUB OEM -40°C Cold Air Chiller Unit Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply 1 Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply 2
The KUB OEM -40°C Cold Air Chiller features a semi-hermetic compressor and is available in capacities ranging from 2HP to 50HP. This industrial-grade chiller delivers precise temperature control with adjustable output temperatures from 5-20°C (±3°C deviation).
Technical Specifications
2HP to 10HP Models
Model 2HP 3HP 4HP 5HP 8HP 10HP
Cooling capacity (kW) 5.6 8.4 11.2 14 22.4 28
Cooling capacity (Kcal/hr) 4816 7226 9632 12040 24080 -
Voltage 1N-220V-50HZ 3N-380V-50HZ
Margin blast pressure (Pa) 300 300 300 500 500 500
Noise (dBA) 68 68 68 72 72 72
Compressor (KW) 1.5 2.25 3.0 3.75 3.0*2 3.75*2
Gross power (KW) 2.1 2.9 4.1 5.1 7.9 9.8
Refrigerant R22
Evaporator Type Copper tube sleeve aluminum fin
Condenser cooling air volume (m³/h) 2000 3000 4000 - - -
Air blower output (m³/h) 400 600 800 1000 1600 2000
Outlet diameter (mm) 100 100 125 125 150 150
Electric motor (KW) 0.37 0.37 0.75 0.75 1.1 1.5
Dimensions (L×W×H mm) 850×500×800 1000×600×880 1000×600×880 1200×600×960 1320×750×1450 1400×780×1550
Weight (kg) 80 110 160 180 300 320
12HP to 50HP Models
Model 12HP 16HP 20HP 30HP 40HP 50HP
Cooling capacity (kW) 34 42 56 84 112 140
Cooling capacity (Kcal/hr) 28896 36120 48160 72240 96320 120400
Voltage 3N-380V-50HZ
Margin blast pressure (Pa) 500 500 550 550 600 650
Noise (dBA) 72 72 75 75 75 75
Compressor (KW) 4.5*2 5.5*2 7.5*2 7.5*3 7.5*4 9*4
Gross power (KW) 10.5 11.2 18 26.5 35.5 43.5
Refrigerant R22
Condenser cooling air volume (m³/h) 12000 15000 20000 30000 40000 50000
Air blower output (m³/h) 2400 3000 4000 6000 8000 10000
Outlet diameter (m) 0.18 0.18 0.20 0.20 0.20 0.20
Electric motor (KW) 1.5 2.2 3.0 4 5.5 7.5
Dimensions (L×W×H mm) 1500×850×1650 1650×850×1650 1800×1300×1900 1830×1300×1900 2100×1500×1900 2300×1700×1900
Weight (kg) 380 420 650 700 880 1050
Key Features
  • Semi-hermetic compressor design for durability
  • Temperature range: 5-20°C (adjustable, ±3°C deviation)
  • Standard side air outlet (top outlet available on request)
  • Copper tube sleeve aluminum fin evaporator and condenser
  • Centrifugal fan type air blower
  • Nylon filter for return air
  • Available in 2HP to 50HP models
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are agents for this compressor, but we manufacture condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, PayPal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Typically 35-60 days after payment. Loading port is usually Shanghai, but other Chinese ports can be arranged.
Q5: Can I have a sample first?
A5: Samples are available at customer's expense.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL or FCL by sea, air, or express. Sea freight takes about 30 days, air/express takes 5-7 days.
Packaging & Warranty

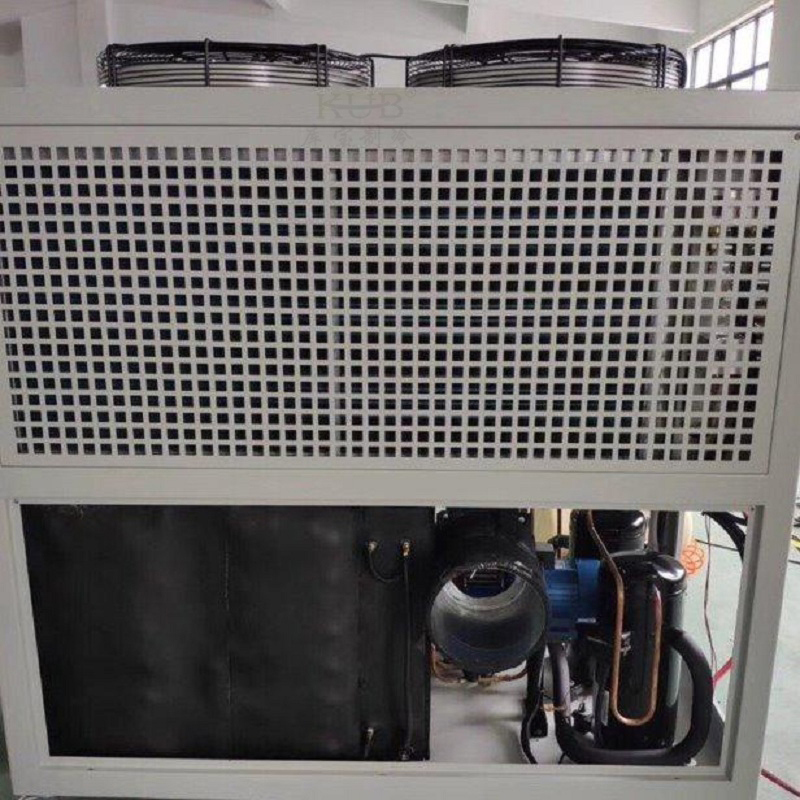

Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply 3
  • Customization: Available for refrigeration, cold storage, agriculture, food service, and chemical applications
  • Warranty: 1-year comprehensive warranty with quality guarantee and after-sales support
