Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty

  • Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty
  • Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty
  • Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty
  • Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty
  • Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty
  • Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty
Lugar de origem CHINA
Marca KUB
Quantidade de ordem mínima 2
Preço $1,000

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tensão 380V 50Hz Poder 2,5 kW
Peso 600 kg Refrigerante R-404a
Temperatura de trabalho 7 graus Capacidade de resfriamento 9,3 kW a 186 kW
Potência do compressor 2,2 kW a 9,0*5 kW Tipo de condensador Concha e tubo
Poder da bomba de água 0,37 kW a 3,75 kW Pressão da bomba 0,18 MPa
Tipo de evaporador Bobina/casca e tubo Fluxo de água gelada 1,8 m³/h a 33 m³/h
Fluxo de água de resfriamento 2,16 m³/h a 37,8 m³/h Diâmetro do tubo 3/4" a 3"
Dimensões 900x560x900mm a 2300x750x1700mm
Destacar

3HP to 50HP Industrial Water Chiller

,

380V 50Hz Water Cooled Condensing Unit

,

1 Year Warranty Water Chiller
Deixe um recado
Descrição de produto
Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor
Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty 0 Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty 1

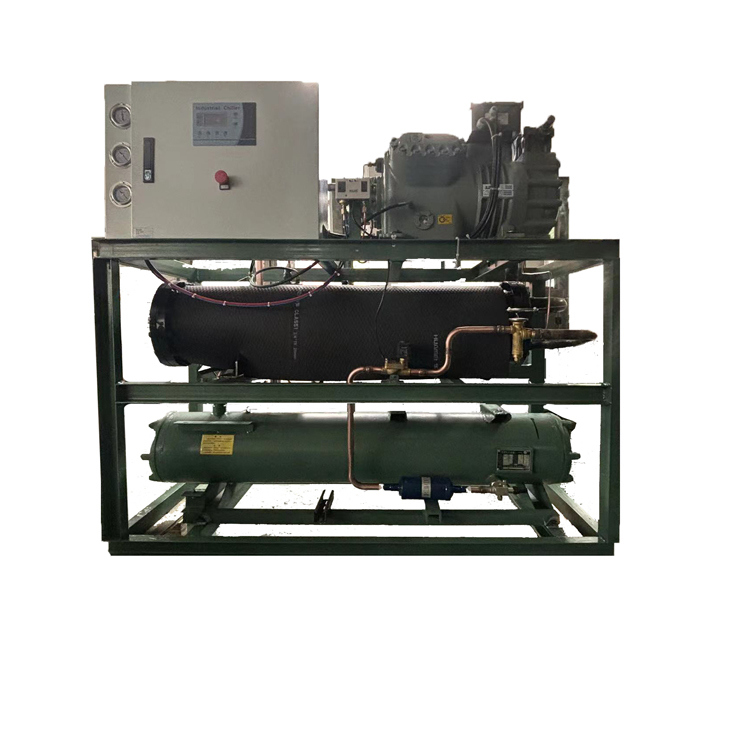

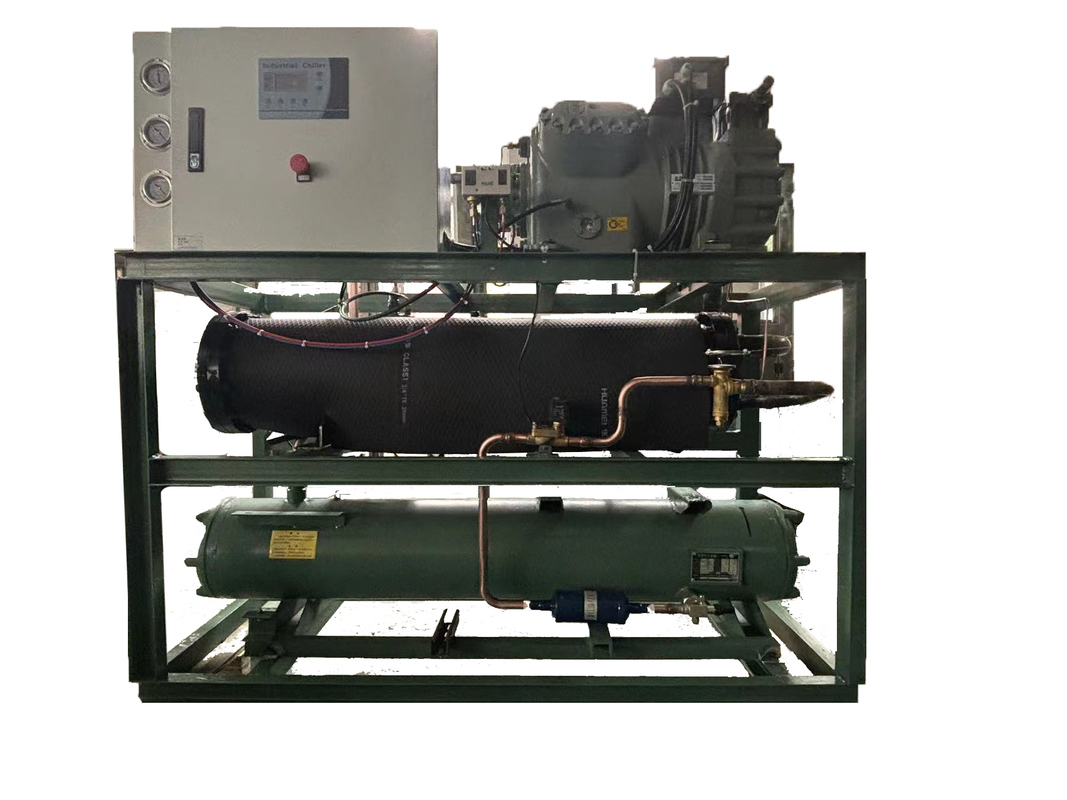

The Kub OEM water cooled chiller features a semi-hermetic compressor with power options ranging from 3HP to 50HP. This industrial-grade chiller includes all core components for immediate operation.
Technical Specifications
3HP to 15HP Models
Model of Machine 3HP 4HP 5HP 6HP 8HP 10HP 12HP 15HP
Cooling capacity (kw) 9.3 12.4 15.5 18.6 24.8 31 37.2 46.5
Cooling capacity (Kcal/hr) 7998 10664 13330 15996 21328 26660 31992 39990
Compressor power (kw) 2.2 3.0 3.75 4.5 3.0×2 3.75×2 4.5X2 5.5x2
Voltage 3-380V-50HZ
Refrigerant R22
Condenser cooling water (m³/hr) 2.16 2.8 3.6 4.3 5.7 7.2 8.6 10.8
Cooling pipe diameter 3/4" 3/4" 1" 1" 1-1/2" 1-1/2" 2" 2"
Water pump power (kw) 0.37 0.37 0.75 0.75 0.75 1.5 1.5 1.5
Pressure (Mpa) 0.18
Chilled water (m³/hr) 1.8 2.4 3.0 3.6 4.8 6.0 7.2 9.0
Frozen water pipe diameter 3/4" 3/4" 1" 1" 1-1/2" 1-1/2" 2" 2"
Dimensions (L×W×H mm) 900×560×900 900×560×900 900×560×900 1000×560×900 1240×670×1400 1240×670×1500 1240×670×1500 1400×750×1500
20HP to 60HP Models
Model of Machine 20HP 25HP 30HP 36HP 40HP 45HP 50HP 60HP
Cooling capacity (kw) 62 77.5 93 111.6 124 139.5 155 186
Cooling capacity (Kcal/hr) 55320 66650 79980 95976 106640 119970 133300 159960
Compressor power (kw) 7.5*2 9.0*2 7.5*3 9.0*3 7.5*4 7.5*2+9.0*2 9.0*4 9.0*5
Voltage 3-380V-50HZ
Refrigerant R22
Condenser cooling water (m³/hr) 13.8 16.2 18.9 22.6 25.2 28.3 31.5 37.8
Cooling pipe diameter 2" 2-1/2" 2-1/2" 2-1/2" 2-1/2" 3" 3" 3"
Water pump power (kw) 2.2 2.2 3.0 3.0 3.75 3.75 3.75 3.75
Pressure (Mpa) 0.18
Chilled water (m³/hr) 11.5 13.5 16.5 19.5 22 25 27.5 33
Frozen water pipe diameter 2" 2-1/2" 2-1/2" 2-1/2" 2-1/2" 3" 3" 3"
Dimensions (L×W×H mm) 1500×630×1500 1600×630×1500 1820×650×1650 1900×650×1650 2000×700×1700 2100×700×1700 2200×720×1700 2300×750×1700
Note: The above data represents standard configurations. Custom configurations are available upon request. Cooling capacity is based on ice water inlet temperature of 12°C (exit 7°C) and cooling water inlet temperature of 30°C (outlet 35°C).
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the compressor agent but manufacture condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What payment methods do you accept?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What is your delivery time and loading port?
A4: Typical lead time is 35-60 days after payment. Loading port is usually Shanghai, but other Chinese ports are available upon request.
Q5: Can I request a sample?
A5: Samples are available at cost.
Q6: How do you ship goods and what are transit times?
A6: We ship via LCL/FCL by sea (≈30 days), air (5-7 days), or express. Transit times vary by method.
Packaging & Warranty
Custom Solutions: We provide customized designs for refrigeration, cold storage, agriculture, food service, and chemical applications.
Warranty: KUB offers a comprehensive 1-year warranty. We guarantee product quality and provide full support for any issues.
